21.1.2 Link aggregation configuration

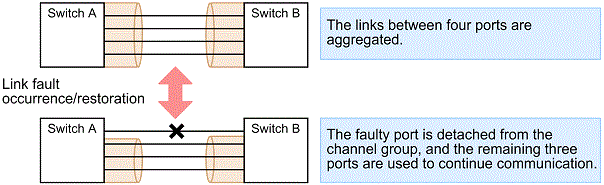

The figure below shows an example of a link aggregation configuration. In this example, four ports are aggregated. If a fault occurs on one of these ports, the faulty port is detached from the channel group, and communication continues by using the rest of the ports as the channel group.
|
